- Vehicle Fitment

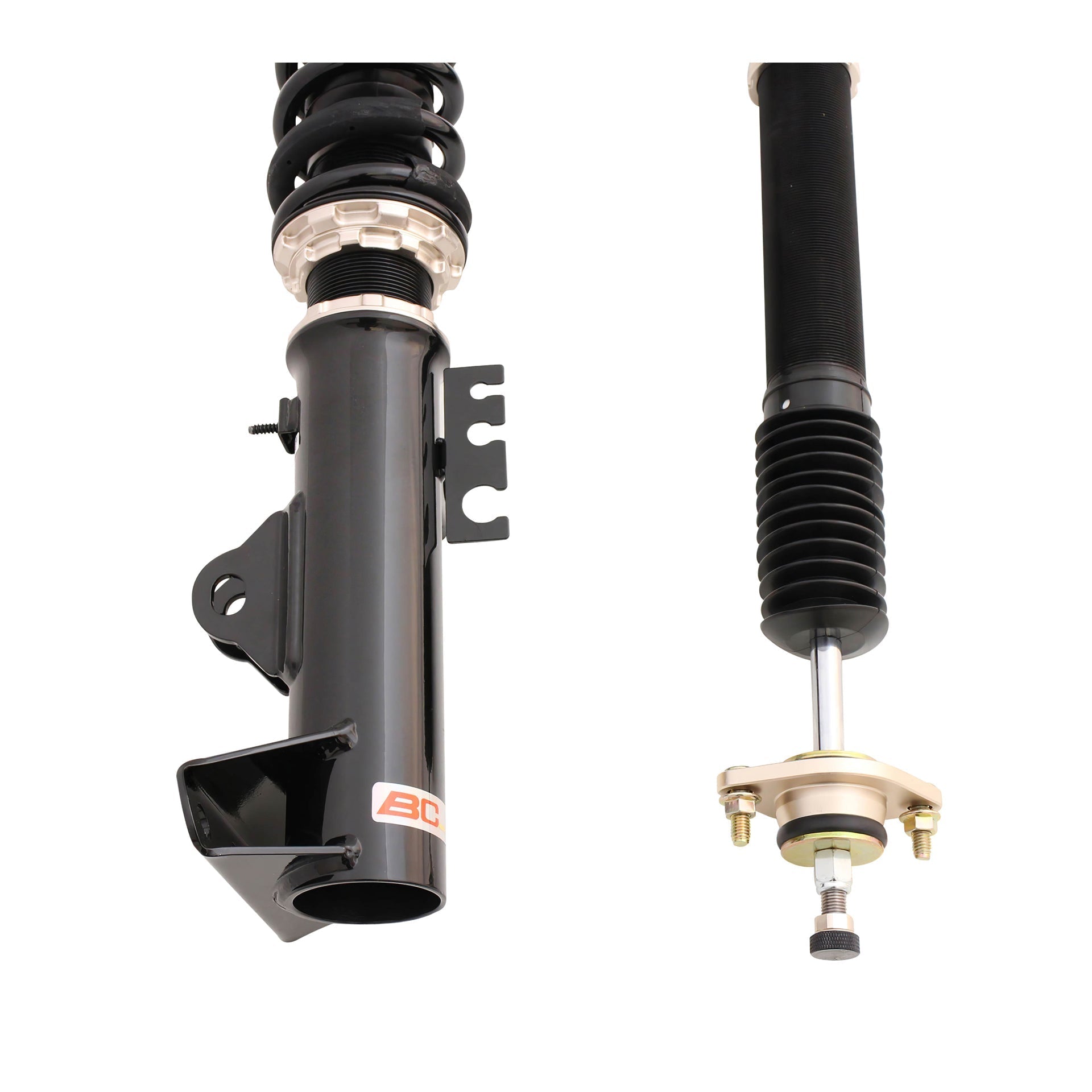

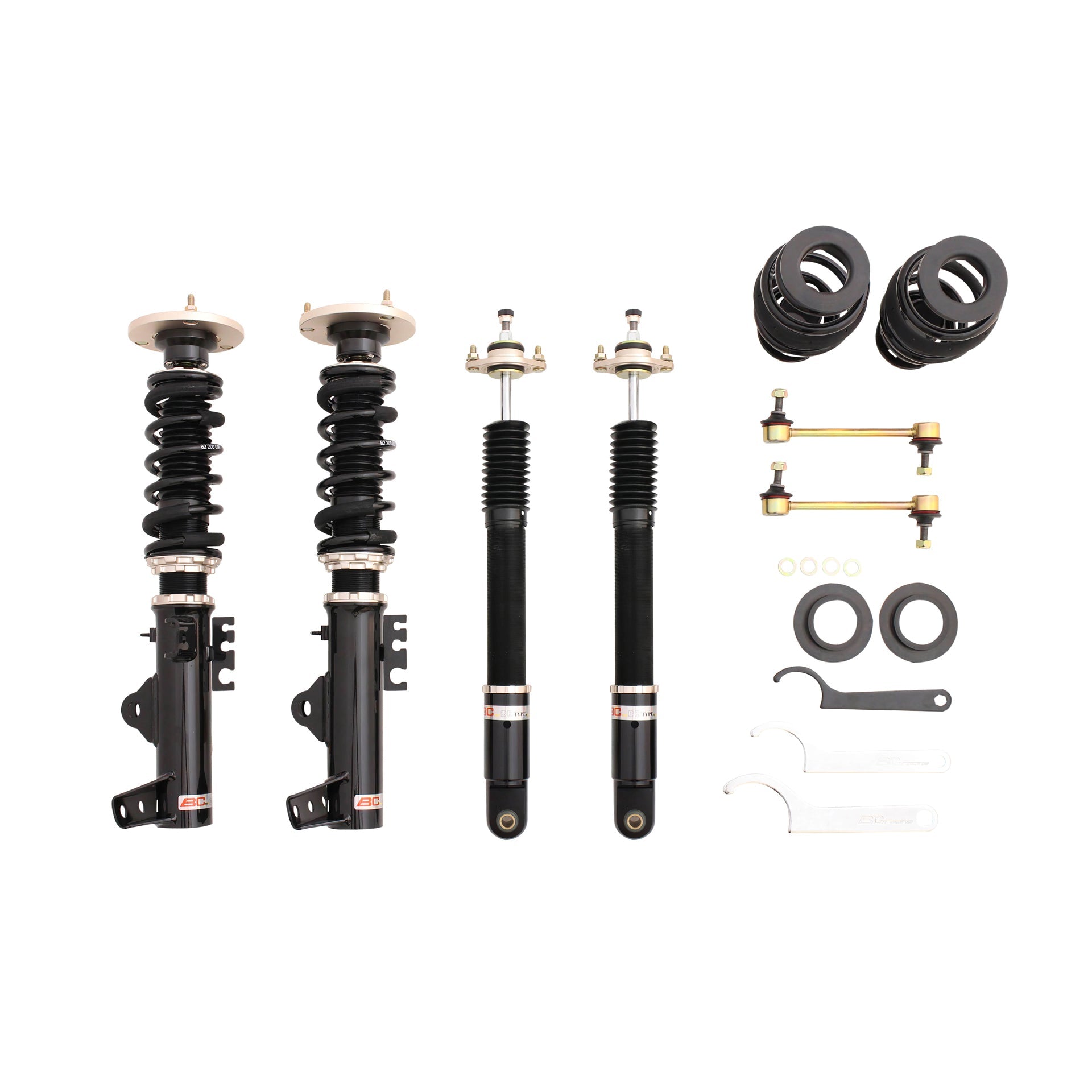

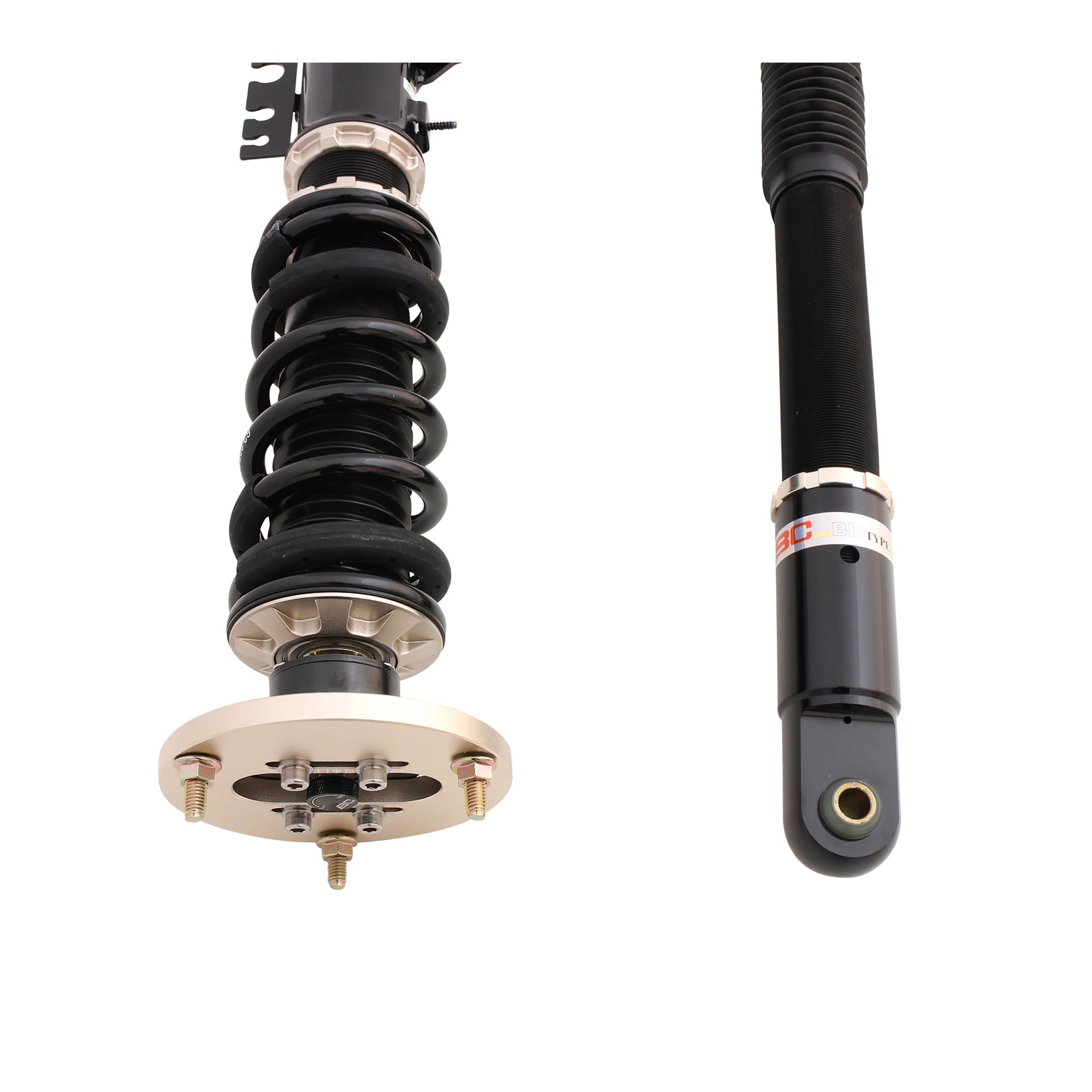

BC Racing DS Series Coilovers for the 1996-2002 BMW Z3 M (E36/E37/E38) use a new proprietary digressive piston design that offers increased damping force at low piston velocities while maintaining a linear damper feel at higher piston velocities.
One of the greatest advantages of increased low-speed damping force relates to what the driver feels, e.g. roll, pitch, dive, and quick weight transitions on technical road courses.
For the ultimate in driver feel, choose the BC Racing DS Series Coilover System. BC Racing DS Coilovers are the most popular track coilover from BC Racing.
- Highly customizable
- Mono-tube shock design
- Digressive piston and damping curve
- Satin chrome finished shock body
- Height adjustment independent of spring compression
- 30-clicks of simultaneous compression/rebound adjustment
- Front camber plates standard on applicable kits
- Rear camber plates available for applicable kits
- Custom spring rates and Swift Springs available
- Custom valving or valving paired for custom spring rates
- 2 year warranty against manufacturing defects
- Fully rebuildable
Please note that not all vehicles can use camber plates in the front and/or rear. Most vehicles will have top mounts included, but some will reuse OEM upper mounts.
|Part Name||DS Series Coilovers|
|Vehicle||1996-2002 BMW Z3 M|
|Front Springs (kg/mm)||62-200-6kg|
|Rear Springs (kg/mm)||62-135-8kg-S|
|Front Swift Springs (kg/mm)||62-203-X|
|Rear Swift Springs (kg/mm)||62-127-X|
|Front Camber Plates||Included|
|Rear Camber Plates||Not Included|
|Note 1||On-Center and Off-Center Front Top Mounts Available|
- 1996 BMW Z3 M (E36/E37/E38)
- 1997 BMW Z3 M (E36/E37/E38)
- 1998 BMW Z3 M (E36/E37/E38)
- 1999 BMW Z3 M (E36/E37/E38)
- 2000 BMW Z3 M (E36/E37/E38)
- 2001 BMW Z3 M (E36/E37/E38)
- 2002 BMW Z3 M (E36/E37/E38)
In-Stock Products: 1-3 business days
Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.
Out of Stock: About 3-4 weeks
If an item is out of stock, the average lead time is 3-4 weeks before shipping.
Custom Builds: About 3-4 weeks
Custom builds include any combination of the following options:
- Custom spring rates
- Extreme Low
- Swift Springs
- DS Series
- ER Series
- HM Series
- RM Series
- ZR Series
Custom spring rates are available at no additional cost. Rates up to 20K are available in both BC Racing springs and Swift Springs. Rates ranging from 20K to 40K will require Swift Springs.
Transit Time: 1-6 days
All BC Racing Coilovers ship UPS Ground from BC Racing North America located in Oviedo, FL. The map below shows the average time it takes for the shipment to arrive at its destination.
- All prices, specs, fitment, and drop are subject to change without notice
- All kits are 2WD unless specified AWD
- Notes regarding electronic damping (EDC, DDS, etc.) pertain to physical fitment only. BC Racing kits DO NOT interface w/ OEM electronic damping control systems.
