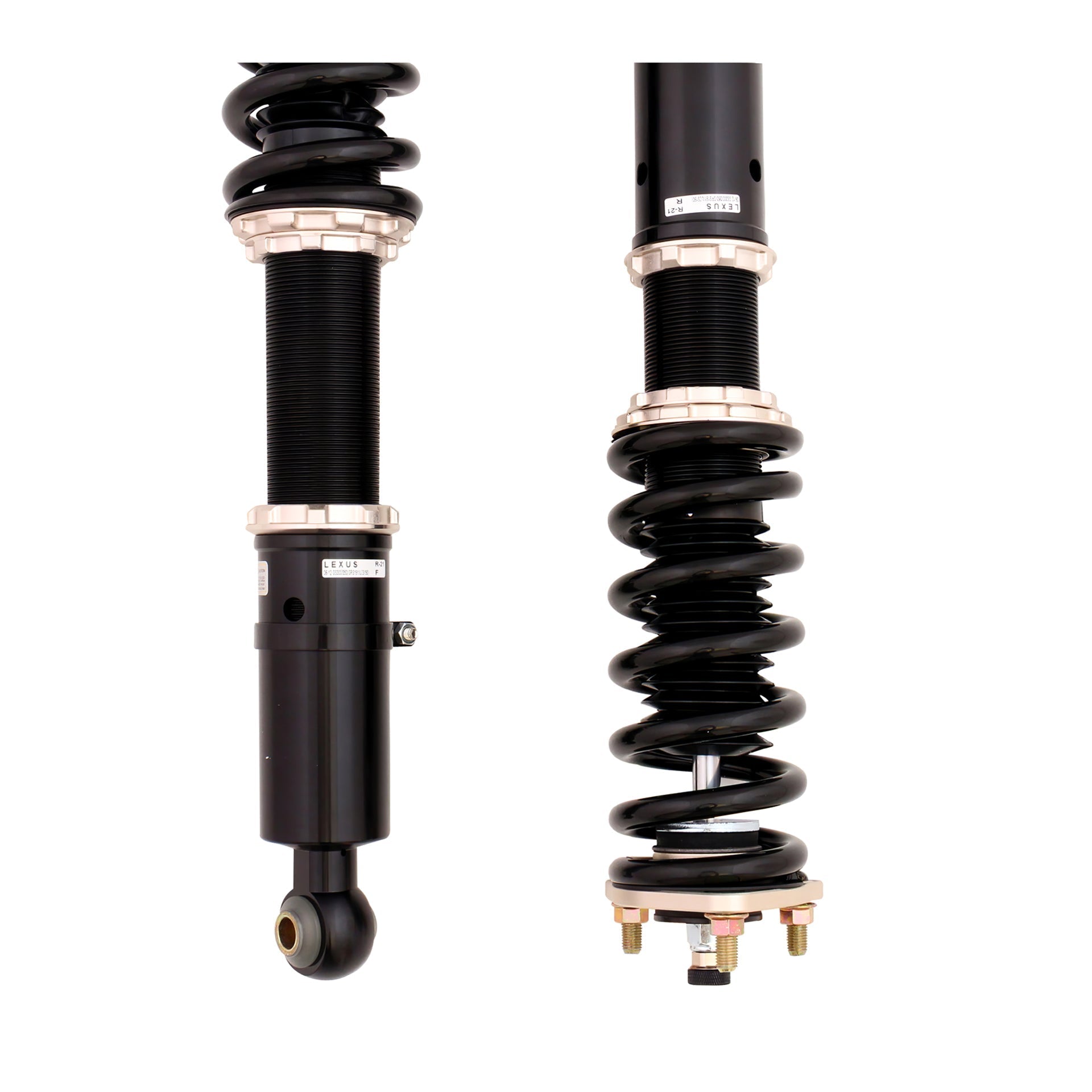

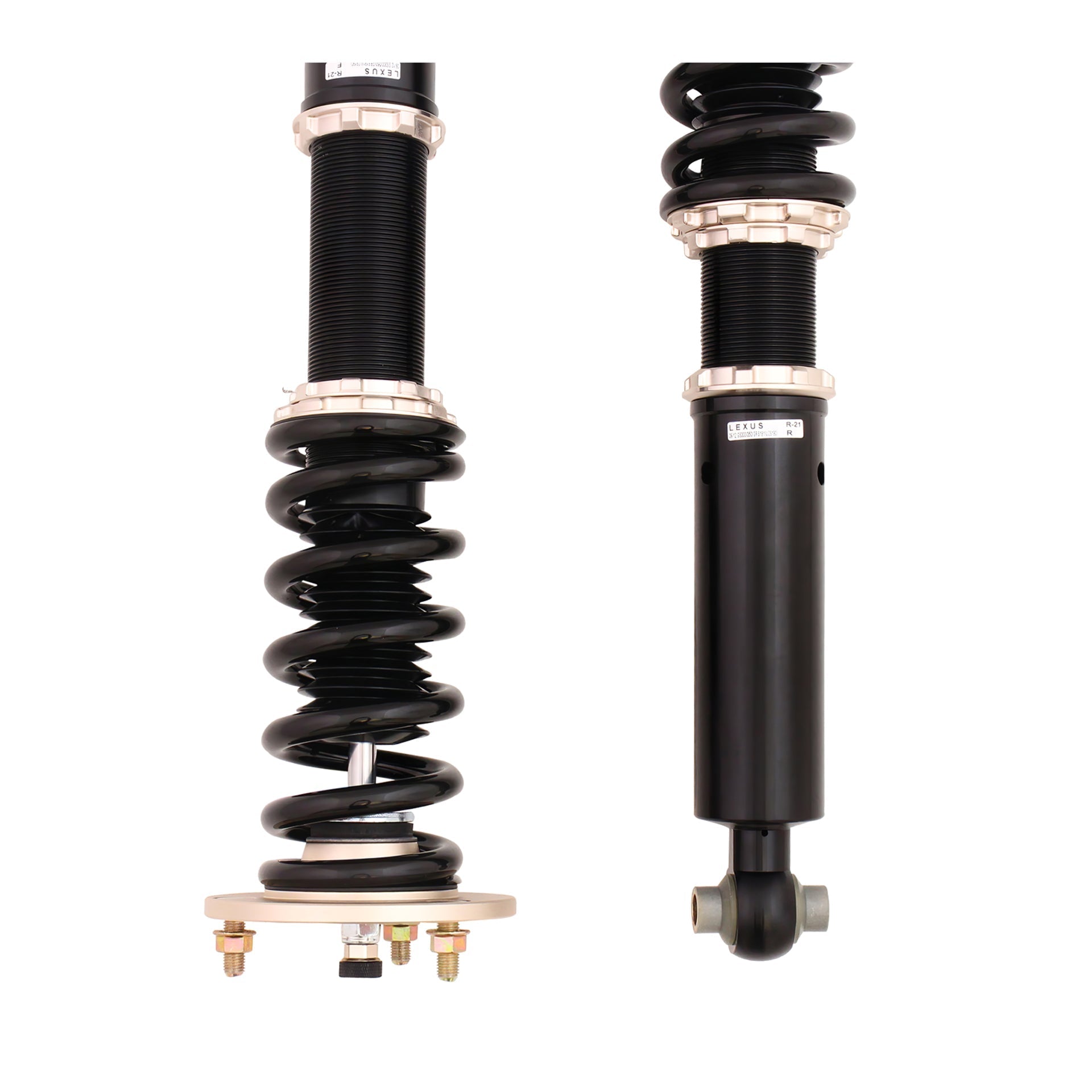

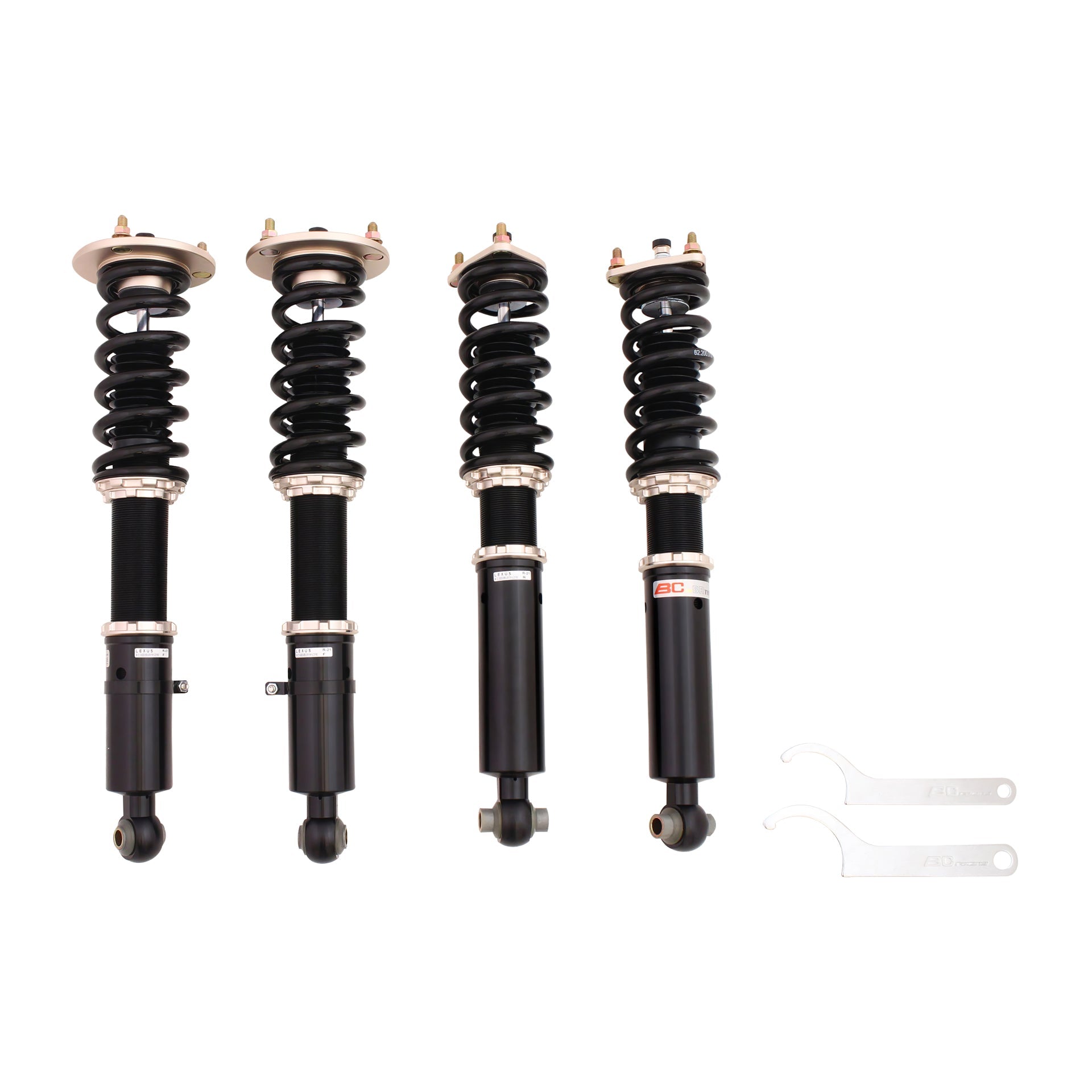

BC Racing DS Series Coilovers for the 2006-2012 Lexus GS300 (GRS191) use a new proprietary digressive piston design that offers increased damping force at low piston velocities while maintaining a linear damper feel at higher piston velocities.
Engineered for the serious driver, the increased low-speed damping force delivers unparalleled control over roll, pitch, and dive, making quick weight transitions seamless on technical road courses. Whether you're carving corners on the track or fine-tuning your suspension for spirited driving, the DS Series is designed to maximize your car's performance and handling.
These coilovers feature full adjustability for ride height and damping, allowing you to customize your suspension setup to your exact needs. Built with BC Racing's renowned durability and precision, they provide consistent performance under intense conditions. With their advanced engineering, the DS Series coilovers are perfect for drivers demanding the best aftermarket suspension solution for their vehicle.
For superior driver feedback and enhanced handling, the BC Racing DS Series Coilovers are the ultimate track-focused suspension upgrade. Choose the system trusted by enthusiasts worldwide to dominate the track and street.
Features:
- Highly customizable
- Mono-tube shock design
- Digressive piston and damping curve
- Satin chrome finished shock body
- Height adjustment independent of spring compression
- 30-clicks of simultaneous compression/rebound adjustment
- Front camber plates standard on applicable kits
- Rear camber plates available for applicable kits
- Custom spring rates and Swift Springs available
- Custom valving or valving paired for custom spring rates
- 2 year warranty against manufacturing defects
- Fully rebuildable with replacement parts
Please note that not all vehicles can use camber plates in the front and/or rear. Most vehicles will have non-adjustable top mounts included, and some will reuse OEM upper mounts. Refer to the Specifications section for upper mount information.
| Part Number | R-21-DS |
| Part Name | DS Series Coilovers |
| Vehicle | 2006-2012 Lexus GS300 |
| Chassis Code | GRS191 |
| Front Springs (kg/mm) | 62-200-12kg |
| Rear Springs (kg/mm) | 62-200-10kg |
| Front Swift Springs (kg/mm) | 62-203-X |
| Rear Swift Springs (kg/mm) | 62-203-X |
| Front Camber Plates | Not Applicable |
| Rear Camber Plates | Not Applicable |
- 2006 Lexus GS300 (GRS191)
- 2007 Lexus GS300 (GRS191)
- 2008 Lexus GS300 (GRS191)
- 2009 Lexus GS300 (GRS191)
- 2010 Lexus GS300 (GRS191)
- 2011 Lexus GS300 (GRS191)
- 2012 Lexus GS300 (GRS191)
In-Stock Products: 1-3 business days
Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.
Out of Stock: About 3-4 weeks
If an item is out of stock, the average lead time is 3-4 weeks before shipping.
Custom Builds: About 3-4 weeks
Custom builds include any combination of the following options:
- Custom spring rates
- Extreme Low
- Swift Springs
- DS Series
- ER Series
- HM Series
- RM Series
- ZR Series
Custom spring rates are available at no additional cost. Rates up to 20K are available in both BC Racing springs and Swift Springs. Rates ranging from 20K to 40K will require Swift Springs.
Transit Time: 1-6 days
All BC Racing Coilovers ship UPS Ground from BC Racing North America located in Oviedo, FL. The map below shows the average time it takes for the shipment to arrive at its destination.
- All coilover kits are 2WD unless specified AWD
- Notes regarding electronic damping (EDC, DDS, etc.) pertain to physical fitment only. BC Racing coilovers DO NOT interface w/ OEM electronic damping control systems.
- All prices, specs, fitment, and drop are subject to change without notice.
- All warranty claims must be submitted to BC Racing North America.
