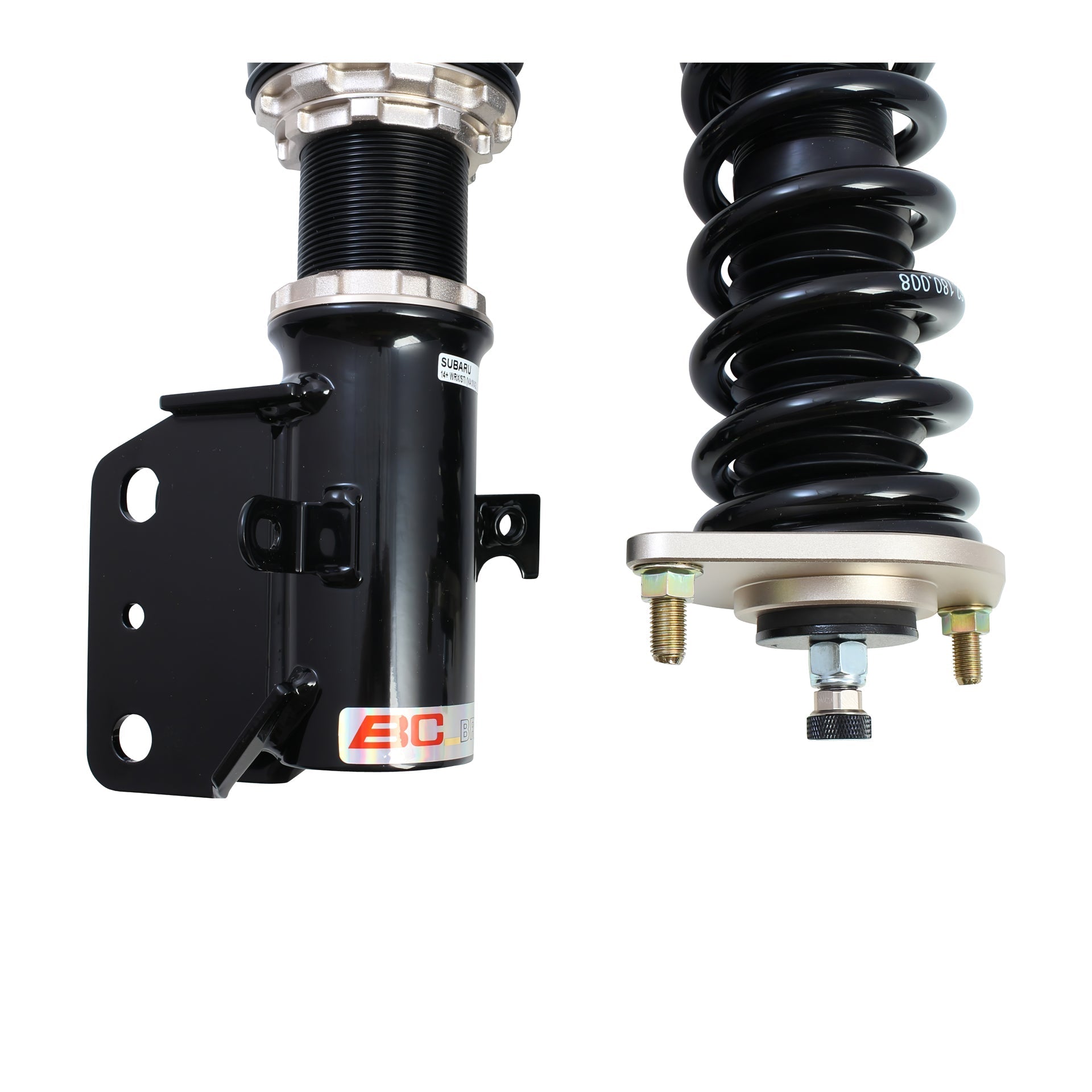

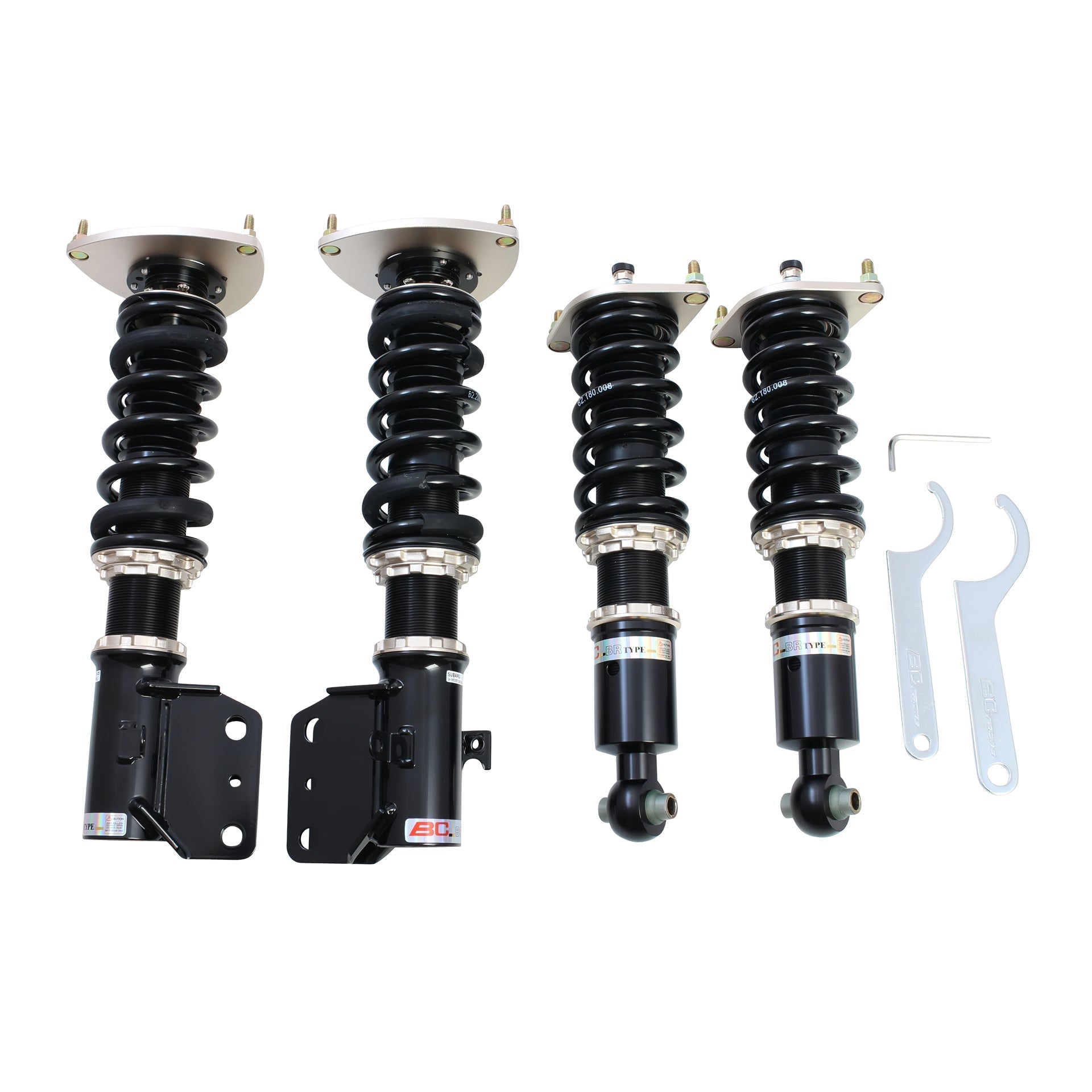

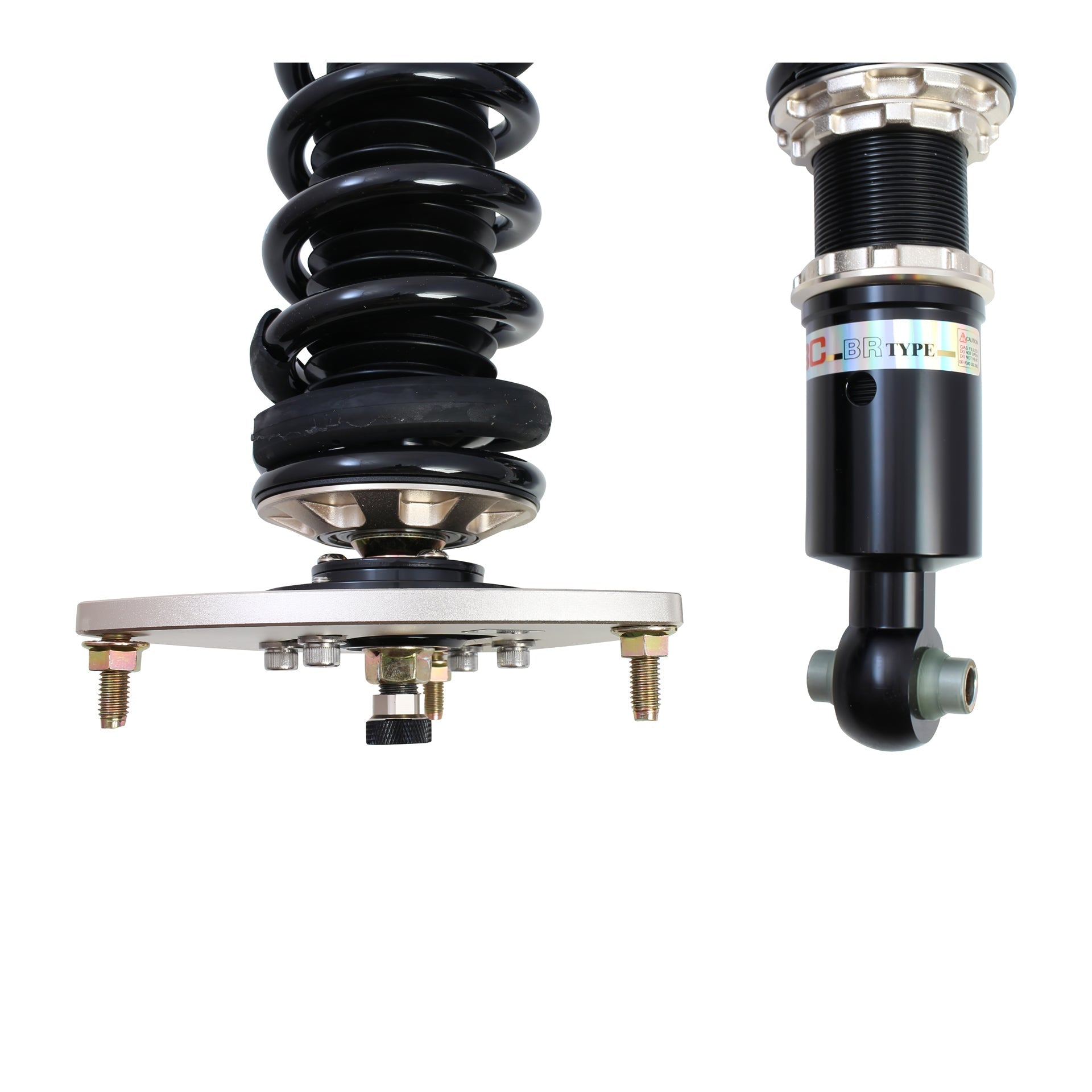

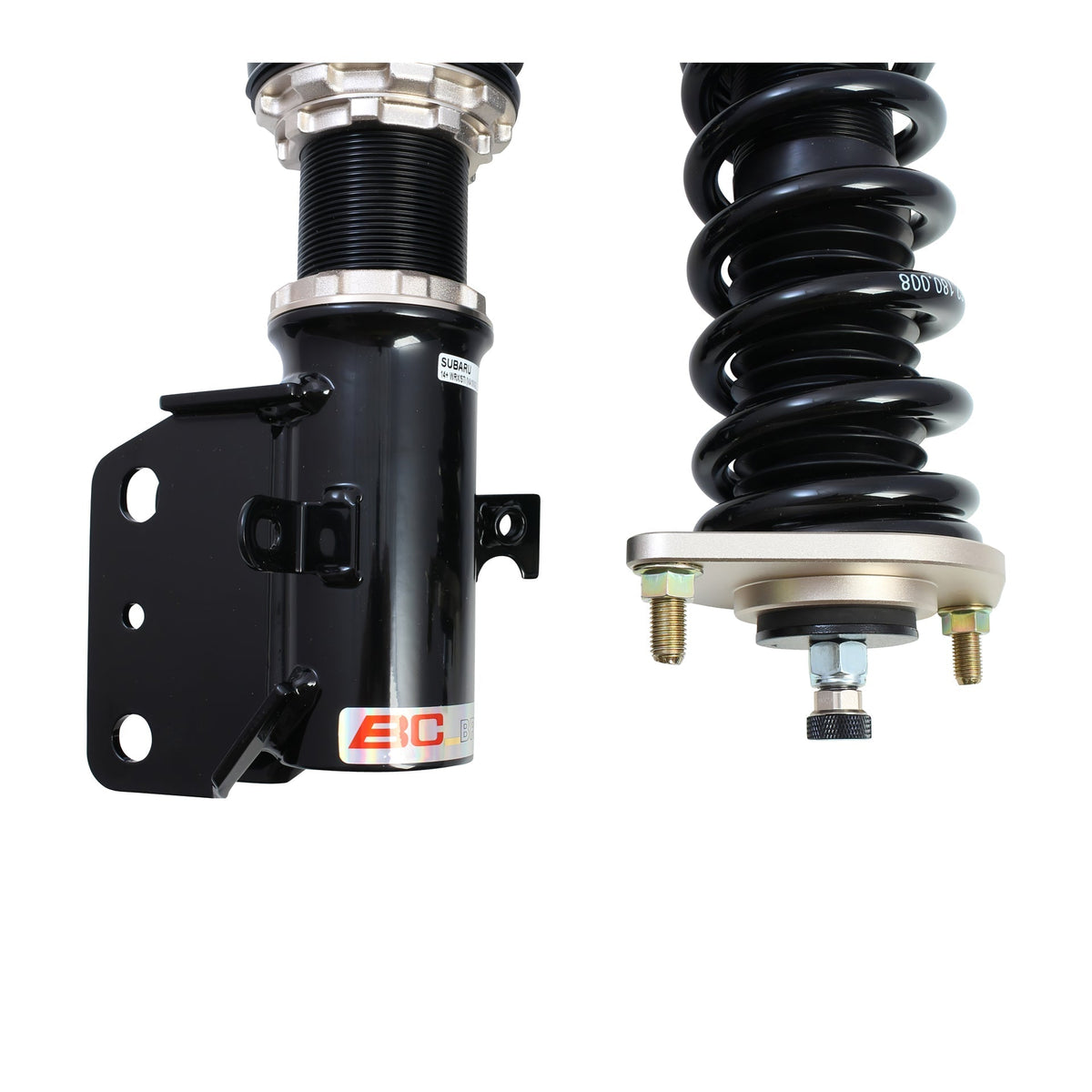

BC Racing HM Series Coilovers - 2015-2021 Subaru WRX STI (VA2)
SKU: F-25-HM
Fitment Notes
Unless specified otherwise, all suspension products are designed for 2WD vehicles only.
Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
Handling Time
In-Stock: 1-3 business days
Products that are in-stock and do not require customization ship the same business day if ordered before 2pm ET. Orders placed after 2pm ET will ship the following business day.
Out of Stock: 3-4 weeks
Products that are out of stock have an average lead time of 3-4 weeks.
Custom Builds: 3-6 weeks
Custom builds vary in time based on the options selected and available parts.
Returns
Orders can be returned within 30 days of fulfillment if all rules shown below are met. View full return policy
- Products must be in original packaging and in a new and resalable condition.
- Any product that was used or fully/partially installed is non-returnable.
- Custom products, special order products, and services are non-returnable and non-refundable.
- Shipping fees and tax are non-refundable.
- If the return of an item was caused by an error on our part, or a manufacturer's part, we will cover the shipping fees.
Warranty
BC Racing North America's warranty period is two years against manufacturing defects. Warranty claims must be submitted directly to BC Racing North America.
BC Racing HM Series Coilovers - 2015-2021 Subaru WRX STI (VA2)
Product Details

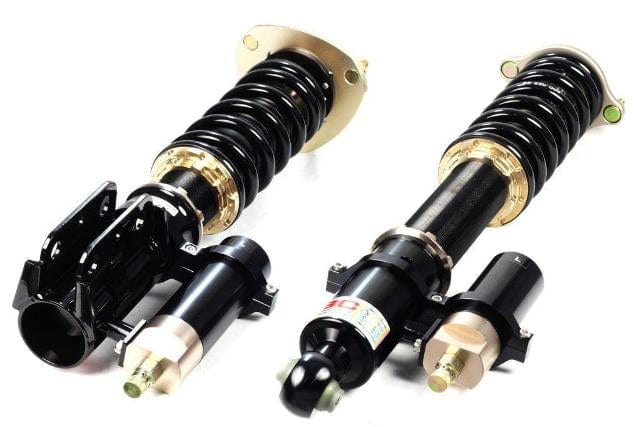

BC Racing HM Series Coilovers for the 2015-2021 Subaru WRX STI (VA2) get its great qualities from a combination of two previous BC Racing Coilover Systems - the RM Series and ER Series. The HM Series uses an inverted mono-tube damper, just like the RM Series, but adds the independent compression and rebound adjustment of the ER Series. The external reservoirs house the secondary damping piston, and allow for a higher oil capacity with the added benefit of increased thermal dissipation.
For vehicles with front and rear McPherson struts, the HM Series comes standard with an inverted mono-tube damper. The damper has a steel braided line exiting the top of the damper leading to the external reservoirs that can be remotely mounted on the chassis for easy adjustment.
Vehicles with a Double A-Arm suspension come with upright dampers. These dampers have steel braided lines or solid stems that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself.
Not all vehicles allow for inverted front and rear dampers. In such cases, an upright mono-tube damper will be supplied. The braided line/hard stem for the external reservoir exits the base of the damper when not inverted.
For Subaru's and other McPherson suspension vehicles that are heavily tracked, the BC Racing HM Series Coilover System is definitely worth checking out!
Features
- Highly customizable
- Swift Springs come standard on HM Series Coilovers
- Inverted mono-tube damper
- Linear twin-piston design
- Height adjustment independent of spring compression
- 30-clicks of compression adjustment via the external reservoirs
- 30-clicks of rebound adjustment from the bottom of the damper
- Front and rear camber plates standard on all applicable kits
- Front and rear pillowball standard when camber plates do not apply
- Custom spring rates available
- Custom valved to match the drivers requested spring rates
- 2 year warranty against manufacturing defects
- Fully rebuildable with replacement parts
Specifications
| Part Number | F-25-HM |
| Part Name | HM Series Coilovers |
| Vehicle | 2015-2021 Subaru WRX STI |
| Chassis Code | VA2 |
| Front Springs (kg/mm) | 62-180-8kg |
| Rear Springs (kg/mm) | 62-180-8kg |
| Front Swift Springs (kg/mm) | 62-178-X |
| Rear Swift Springs (kg/mm) | 62-178-X |
| Front Camber Plates | Included |
| Rear Camber Plates | Not Applicable |
Vehicle Fitment
- 2015 Subaru WRX STI (VA2)
- 2016 Subaru WRX STI (VA2)
- 2017 Subaru WRX STI (VA2)
- 2018 Subaru WRX STI (VA2)
- 2019 Subaru WRX STI (VA2)
- 2020 Subaru WRX STI (VA2)
- 2021 Subaru WRX STI (VA2)
Reviews / Q&A
FAQs
Please read our FAQs page to find out more.
How much will these coilovers lower my car?
On average, Standard Drop allows about 1-2 inches of drop range below factory ride height. Extreme Low allows about 2-3 inches of drop.
Can they achieve factory ride height?
No. In most cases, factory ride height cannot be achieved.
Will the struts be valved correctly?
Yes! The shocks and/or struts are always valved to match the spring rates you choose during a custom build. There is no additional cost.
Can they be rebuilt?
Yes, all BC Racing Coilovers can be rebuilt by purchasing individual replacement parts. For example, if a strut leaks, you can simply replace the shock cartridge.
Is there rush shipping?
Rush shipping is not offered, but all in-stock kits ship very fast— most by the next day.
Customizing the coilovers in any way will delay the shipment by a few weeks on average.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
