Product Details

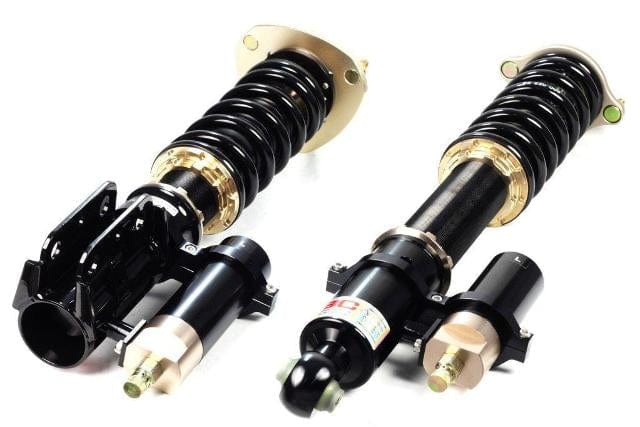

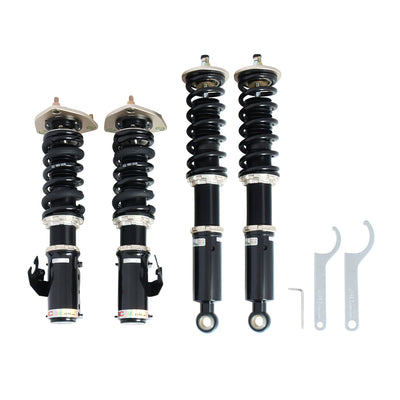

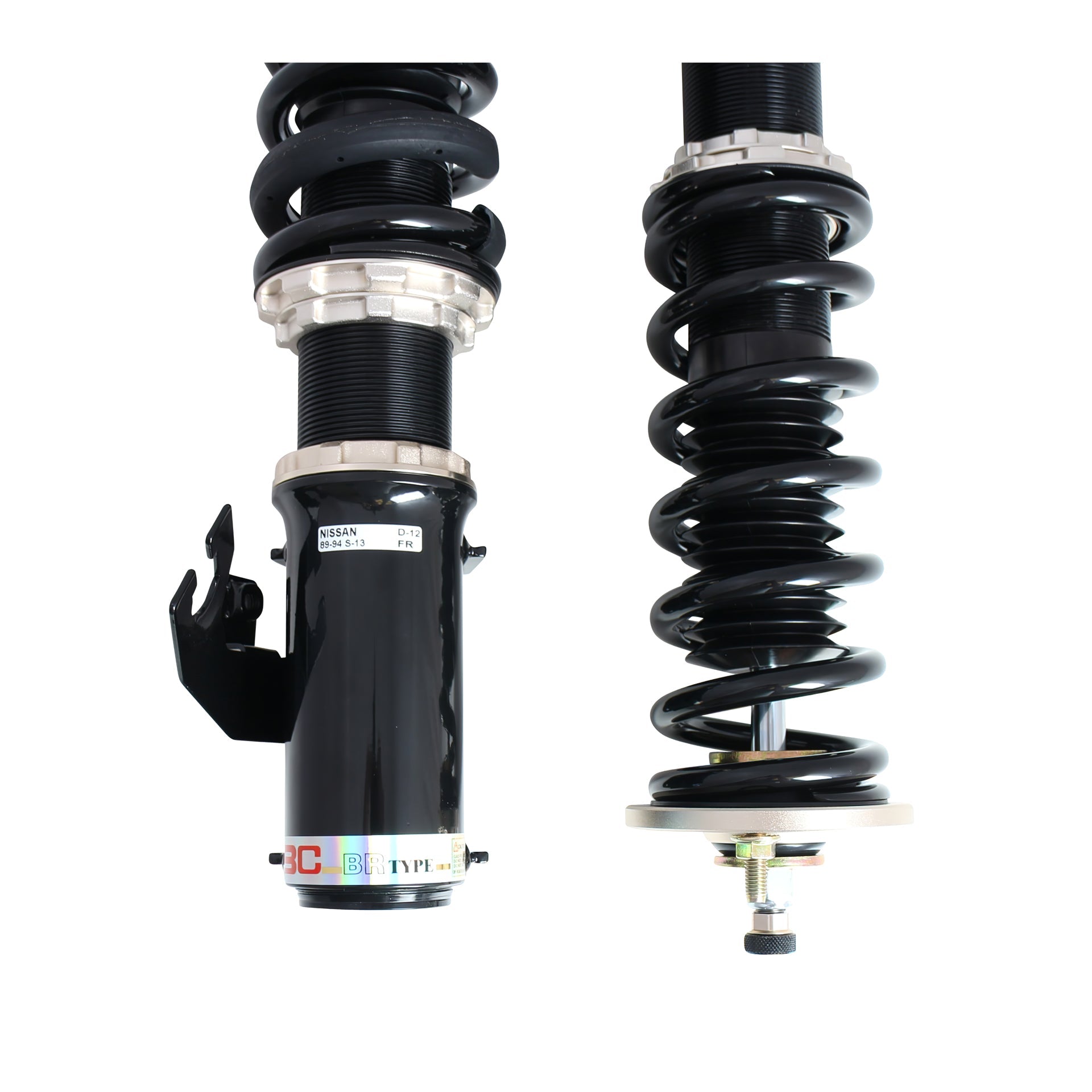

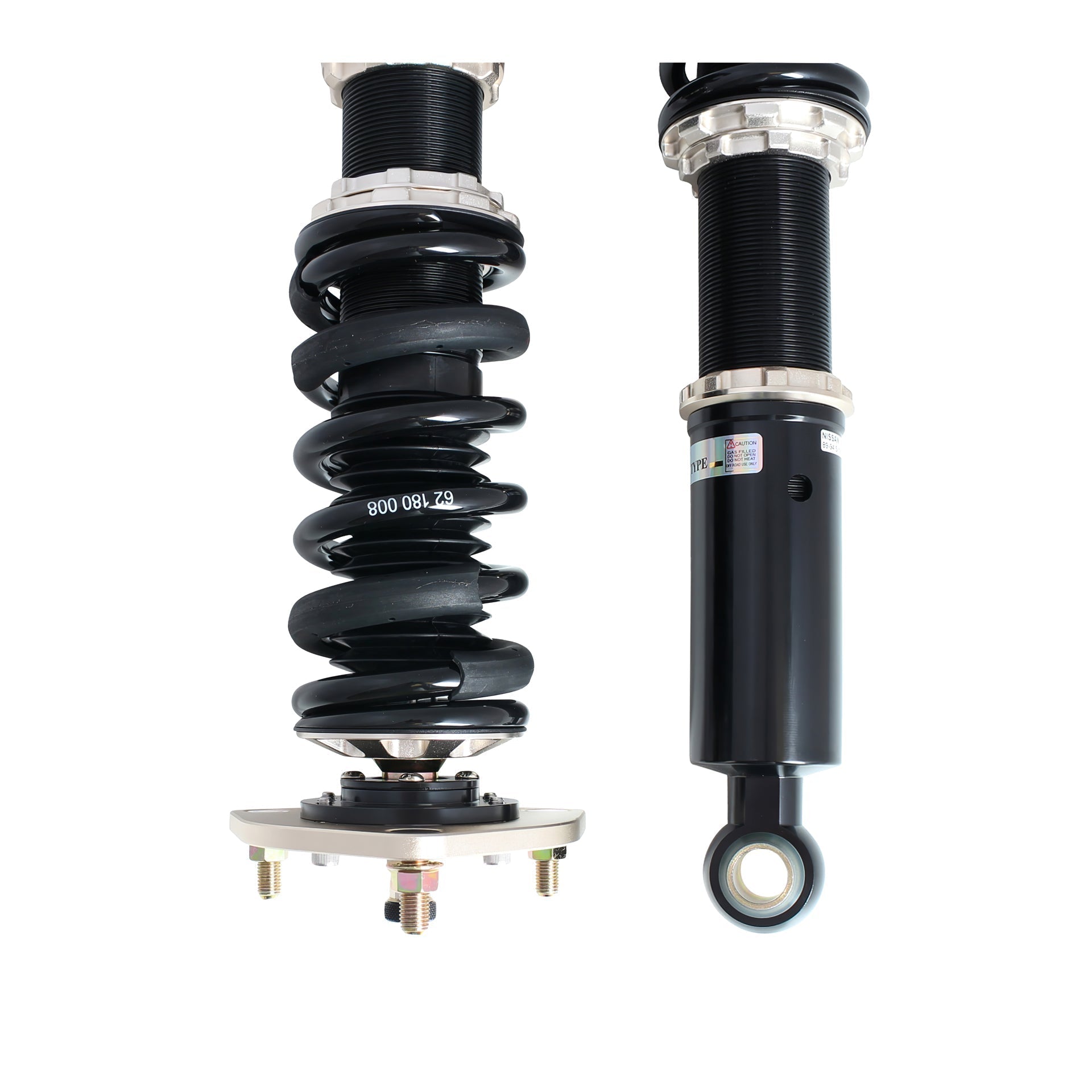

BC Racing HM Series Coilovers for the 1989-1994 Nissan 240SX (S13) combine the inverted-damper durability of the RM Series with the independent compression and rebound tuning of the ER Series, BC's pick for track-day McPherson-strut builds. Every kit is extensively tested on the 240SX S13 chassis and refined until it balances ride quality with performance, the reason 240SX coilovers from BC Racing are the best-selling adjustable kits in their segment worldwide.
HM Series kits use an inverted mono-tube damper on McPherson-strut chassis (upright on double-wishbone) with external reservoirs feeding separate compression and rebound adjusters. The result: the tuning depth of the ER Series inside the heavy-load chassis architecture of the RM. The off-the-shelf setup from BC Racing is deliberately balanced, spring rates and valving chosen so the kit feels comfortable day-to-day without giving up performance when you push it. Drivers who want a different recipe can spec Swift Springs, custom spring rates, or fully custom valving at checkout; BC will tune the dampers to match, which is a depth of customization most brands only offer on their top-tier kits.
BC Racing has been manufacturing adjustable coilovers since 2004 and is one of the most popular coilover brands in the automotive tuning industry for a reason: competitive pricing, deep customization, proven reliability, and a fully rebuildable damper design that lasts years instead of seasons. These 240SX coilovers arrive tuned for the S13 chassis and ready to bolt in, no break-in period, no guessing at setup. Every kit ships with a 2-year manufacturer warranty, lifetime access to BC service parts (pistons, seals, shafts, no unit replacement required when it's time for a rebuild), and in-house tech support from both BC Racing and the Springrates team.
Features
- 30-level rebound adjustment (top of damper)
- 30-level compression adjustment (external reservoir)
- Inverted mono-tube damper on McPherson-strut vehicles; upright on double-wishbone
- Combines RM Series inverted-damper architecture with ER Series 2-way adjustability
- Ride height adjustable independent of spring preload
- Upper mount hardware varies by chassis, camber plates, pillowball, or reused OEM mounts. See the Specifications table for what's included on your kit.
- Swift Spring and custom spring rate upgrades available at checkout
- Custom damper valving paired with custom spring rates on request
- Fully rebuildable, replacement parts available from BC for the life of the shock
- 2-year manufacturer warranty against defects
Specifications
| Part Number | D-12-HM |
| Part Name | HM Series Coilovers |
| Vehicle | 1989-1994 Nissan 240SX |
| Drivetrain | RWD |
| Chassis Code | S13 |
| Damping Adjustment | 2-Way (30 levels rebound/30 levels compression) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 6 kg/mm |
| Spring Rate - Rear | 4 kg/mm |
| Spring Size - Front | 62-180-6K |
| Spring Size - Rear | 62-230-4K |
| Swift Springs - Front | 62-178-X |
| Swift Springs - Rear | 62-228-X |
| Camber Plates - Front | Included |
| Camber Plates - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Notes |
|
Vehicle Fitment
- 1989 Nissan 240SX (S13)
- 1990 Nissan 240SX (S13)
- 1991 Nissan 240SX (S13)
- 1992 Nissan 240SX (S13)
- 1993 Nissan 240SX (S13)
- 1994 Nissan 240SX (S13)
